Auto-Restart for Lithium Batteries
-
Smart Power Allocation (PV/Grid/Battery)
-
Adjustable Charging Voltage
-
Easy Installation & Lightweight
-
Reverse Battery Protection + Fuse Switch
-
PF1.0, High Efficiency, Low Consumption
-
Supports Battery-Free Operation
-
Optional WiFi Monitoring
-
High Output Accuracy (+5%)
-
Built-in Lithium Battery BMS
Description
Feature:
1. Lithium Battery Auto-restart Function, More Convenient for Lithium Battery Charging
2. Intelligent Power Supply Mode, Intelligent Distribution of Solal Panel/Mains/Battery Power Shares
3. Utility Charging Voltage/PV Charging Voltage Adjustable, Match Different Battery Charging Requirements
4. Convenient Installation And Transportation
5. Battery Reverse Connection Protection with Fuse Switch, Safer installation
6. PF1.0, High Efficiency, Lower Consumption,Energy Conservation/Environmental Protection/Electricity Saving/Cost Saving

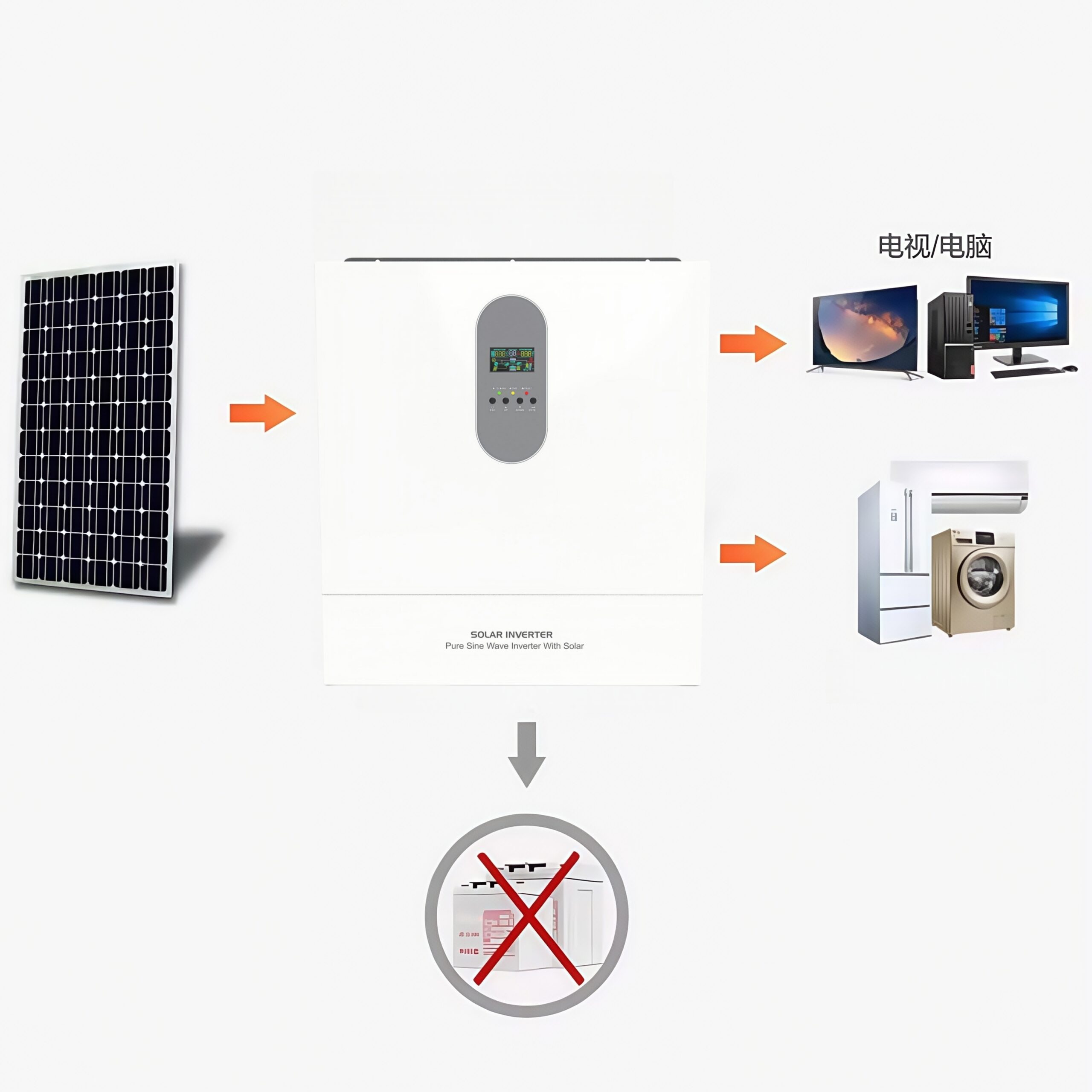

7. Support Working without Battery: Reduce Solar System Cost
8. Communication Option: External WlFl, Supervise at Any Time (optional)
9. High Precision of Output Voltage,+5%, Take Care of Your Appliances
10.BMS function for lithium battery
|
M o d e l
|
GD4024SMH
|
GD6248SMH
|
GD8648SMH
|
GD11048SMH
|
|
|
AC Input voltage
|
AC Input
|
220VAC (standard)/110VAC (customized)
|
|||
|
Input Voltage Range
|
90- 280VAC±3V(Normal Mode)170- 280VAC±3V(UPS Mode)
|
||||
|
Input Frequency
|
50/60Hz±5%
|
||||
|
Rated Power
|
4000W
|
6200w
|
8600W
|
11000W
|
|
|
Output
|
PV Inverter Output Power
|
4500W
|
6500W
|
11000W
|
12000W
|
|
Output Voltage
|
220/230/240VAC±5%
|
||||
|
Output Frequency
|
50/60Hz±0.1%
|
||||
|
Output Wave
|
Pure Sine Wave
|
||||
|
Transfer Tim
|
≤ 10ms (UPS mode)/≤ 20ms (INV mode)
|
||||
|
Peak Power
|
8000VA
|
12400VA
|
17200VA
|
22000VA
|
|
|
Overload Ability
|
Battery Mode:11s@105%~150%Load 2s@150%~200%Load 400ms@>200%Load
|
||||
|
Grid-connected
Operation |
Output Voltage
|
220/230/240VAC
|
|||
|
Grid Voltage Range
|
170-265VAC
|
||||
|
Grid Frequency Range
|
49-51±1Hz/59-61±1Hz
|
||||
|
Rated Output Current
|
17.4A
|
26.9A 37.4A
|
47.8A
|
||
|
Power Factor Range
|
>0.99
|
||||
|
(DC/AC)Peak Efficiency(DC/AC)
|
98%
|
||||
|
Battery
|
Rated Voltage
|
24Vdc
|
48Vdc
|
48Vdc
|
48Vdc
|
|
Constant Charging Voltage(Configurable)
|
28.2Vdc
|
56.4Vdc
|
56.4Vdc
|
56.4Vdc
|
|
|
Float Charging Voltage(Configurable)
|
27Vdc
|
54Vdc
|
54Vdc
|
54Vdc
|
|
|
Charger
|
PV Charging Mode
|
MPPT
|
MPPT
|
Dual MPPT
|
Dual MPPT
|
|
Max PV Input Power
|
6500W
|
8500W
|
2×6500W
|
2×5500W
|
|
|
MPPT Input Voltage Range
|
60-500Vdc
|
60-500Vdc
|
90-500Vdc
|
90~500Vdc
|
|
|
Optimal V mp Range
|
300~400Vdc
|
360~430Vdc
|
360~430Vdc
|
360~430Vdc
|
|
|
Max PV Input Voltage
|
500Vdc
|
500Vdc
|
500Vdc
|
500Vdc
|
|
|
Max PV Input Current
|
27A
|
27A
|
27A/27A
|
27A/27A
|
|
|
Max PV Charging Current
|
120A
|
120A
|
120A
|
150A
|
|
|
Max AC Charging Current
|
100A
|
100A
|
150A
|
150A
|
|
|
Max Charging Current
|
120A
|
120A
|
120A
|
150A
|
|
|
Display
|
LCD Interface
|
Can display operating mode/load/input/output
|
|||
|
Interface?
|
RS232
|
Baud Rate 2400
|
|||
|
Expansion Slot Communication Interface
|
Lithium Battery BMS Communication Card,WIFI /Pitch2.54mm
|
||||
|
Max PV Input Voltage
|
Not Support Parallel
|
||||
|
Ambient Temperature
|
Operating Temperature
|
-10℃~50℃
|
|||
|
Operating Environment Humidity
|
-10℃~60℃
|
||||
|
Storage Temperature
|
20%~90% Non Condensing
|
||||
|
Noise
|
≤50dB
|
||||
